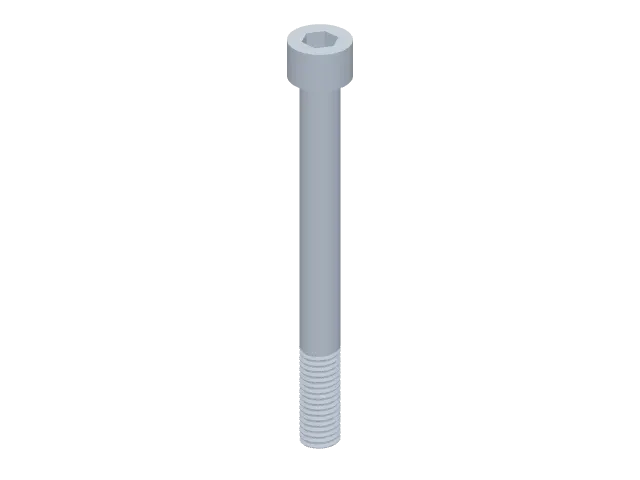

M10 x 100 socket head cap screw
A cap screw with a hex socket drive, threaded to ISO 4762.
3D model
Loading 3d model…
Dimensioned drawing
Loading dimensioned drawing…
Key dimensions
- Thread
- M10
- Overall length
- 110 mm
- Head diameter
- 16 mm
